    Paint Circulation System/Automotive Paint Shop

    Ask Lasest Price
    Brand Name : CEI-Kinte
    Certification : ISO9001/FEM/ISO14001/OHSAS 18001
    Model Number : Customized
    Price : Negotiable
    Delivery Time : According to customer's requirement
    Payment Terms : Negotiable
    Supply Ability : Strong production capacity
    • Product Details
    • Company Profile

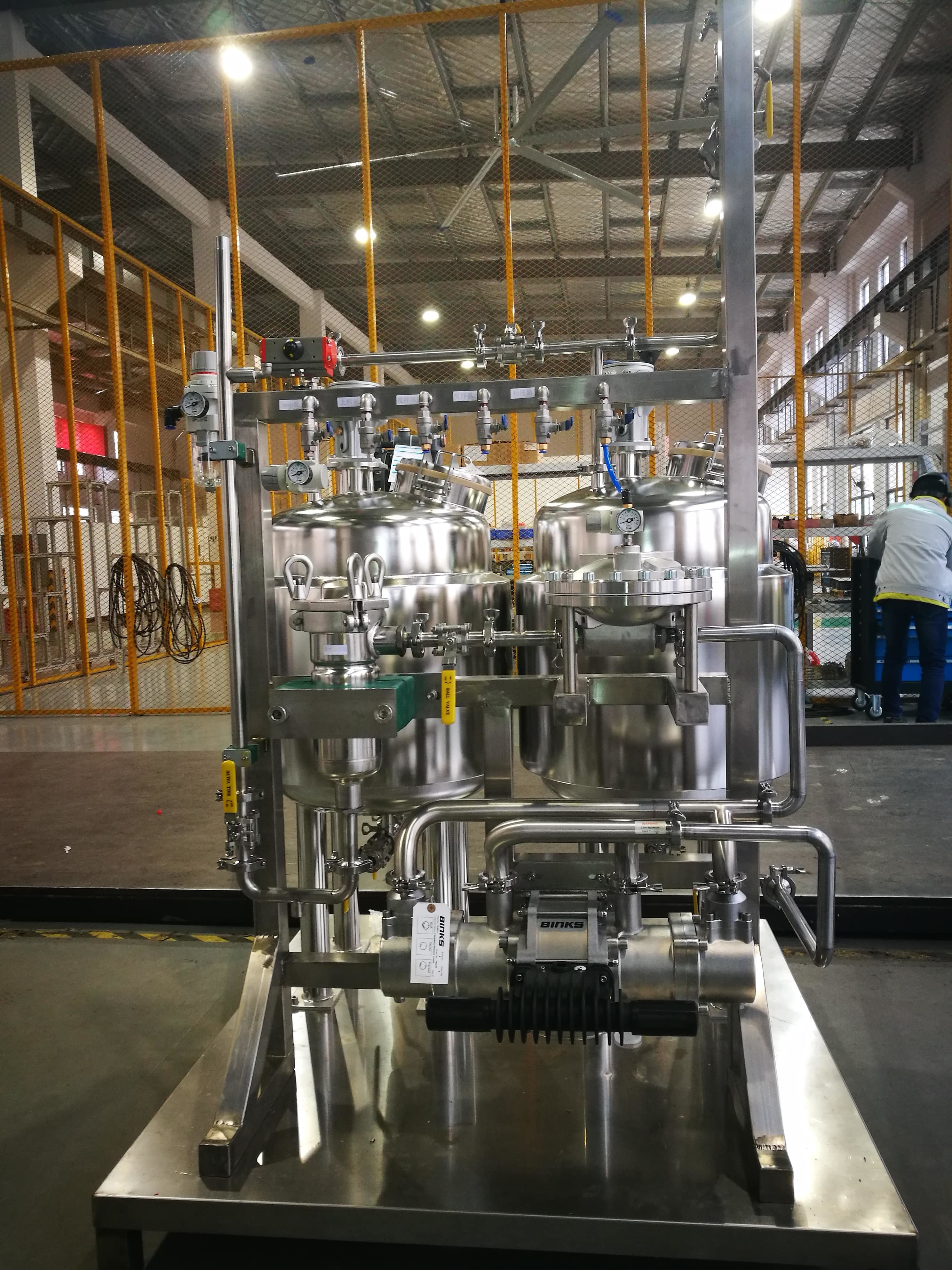

    Paint Circulation System/Automotive Paint Shop


    Configuration of centralized paint supply system


    SN

    Name

    Speciation

    Qty

    Unit

    Origin

    Note

    I. Paint supply system

    1

    3 set for primer, 12 set for topcoat, 1 set for clear coat. In total 16 sets. Below is the configuration for one set. (subject to customer requirement for color)

    1,1

    High-Flo3:1 piston pump

     Including mixer and transfer pump used in PCS, not including the mixer and transfer pump for paint barrel1

    Set

    Graco & same level

    Transport paint to the spray booth, with flow rate of 53L/min/32cpm (reciprocating) and maximum output pressure 300 psi, which can fully meet the requirements of use.

    1,2

    Piston pump support rack

     1PCKINTE

    To support and fix the pump

    1,3

    Inlet hose for piston pump

    3/4”×1.5M1

    Pc

    CHINA

    3/4”, connect the air inlet of the feeding module to the compressed air steel pipe.

    1,4

    Air ball valv139

    e

     1PCGraco & same level

    Inlet for 3:1 piston pump. Air on and off.

    1,5

    Air triple components

    3/4”1PCAIRTAC

    Used for 3:1 piston pump. Air source treatment.

    1,6

    No-loading protection device

     1PCGraco & same level

    Used for 3:1 piston pump. When there is no material, it will protect the piston pump.

    1,7

    Air connection components

    3/4”1batchCHINA

    For air pipeline connection.

    1,8

    Air hose

    3/4”×1.0M1

    Pc

    CHINA

    Connect paint supply pump inlet to air pipe.

    1,9

    Piston pump paint inlet hose

    1"×1.5M1

    Pc

    CHINA

    1" connects the paint inlet of the pump to the paint supply tank, supported by steel mesh.

    1,10

    SUS stabilized tower

     1PCCHINA

    Used to reduce paint pulsation and stabilize pressure

    1,11

    Bag filter

     1PCCHINA

    Used for 3:1 pump paint outlet, 60-150 mesh filter, large flow. Equipped with front and rear pressure display gauges (ball valves on both sides of the filter, can be closed for maintenance and replacement, etc.), and it can be judged whether it needs cleaning according to the pressure difference. 120-150 mesh filter screen for metallic paint, 50-75 mesh filter screen for primer coat; 300psi pressure resistance

    1,12

    Paint release valve

    1/4”1PCCHINA

    Used when filter need maintenance, repair, two-piece type, pressure resistance 300psi


    1,13

    Paint pressure meter

     2PCCHINA

    Cooperate with filter

    1,14

    Fully covered SUS ball valve

    1”2PCCHINA

    Used in conjunction with filter and pressure gauge, two-piece type, withstand pressure 300 psi

    1,15

    Piston pump outlet hose

    1"×1.5M1

    Pc

    CHINA

    For 3:1 pump, withstand pressure 500Psi, connect the paint outlet of the pump to the paint circulation pipeline

    1,16

    Back pressure valve

     1PCGraco & same level

    Withstand pressure 300 Psi, 1”, and maximum flow rate18L/min. Back pressure range 15-200 psi (0.3-14 bar) is installed at the end of the circulation return pipeline of the paint main pipe to ensure the paint pressure in the circulation pipeline.

    1,17

    Piston pump return hose

     1

    Pc

    Graco & same level

    3/8”, withstand pressure 300Psi, connect the paint circulation return line to the paint bucket.

    1,18

    Fully covered SUS ball valve

     1PCCHINA

    Used for 3:1 pump, 1" pressure resistance 500Psi. It is used to cut off the end of the paint circulation pipeline and during maintaining pressure reserve valve.

    1,19

    Other accessories

     1

    Set

    KINTE

    Connecting to paint pipelines, SUS

    Paint Circulation System/Automotive Paint ShopPaint Circulation System/Automotive Paint ShopPaint Circulation System/Automotive Paint Shop
