1. Production condition
The following working areas included:
1)Pre-cleaning ,ED sanding
2) Sealing (Interior & Exterior)
3) Under body sealing & Undercoat
4)Pre-cleaning for Primer painting and Top coat
5) Primer sanding
6) Inspection & Touch up
7) Minor repair , Heavy repair & Wax
8) skid cleaning
Etc…
2. Design Description
2-1. Work floor
Gratings and grating support frames are employed as the work floor
for all working areas and these work floors are of self supporting
type.
Air exhaust plenum is fabricated of sheet metal when a specific
working area has air exhaust system, and drain pit is furnished.
Industrial type throw-away filters are employed as inlets.
Rust-proof coating is applied to the angle columns of the grating
support frames and outsCitye the exhaust plenums.
Make up water supply is installed for filling water when wet type
drain pit is employed
Mild steel products are used for fabrication

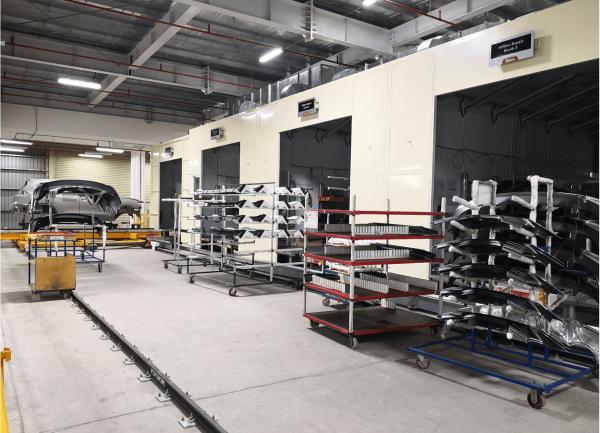

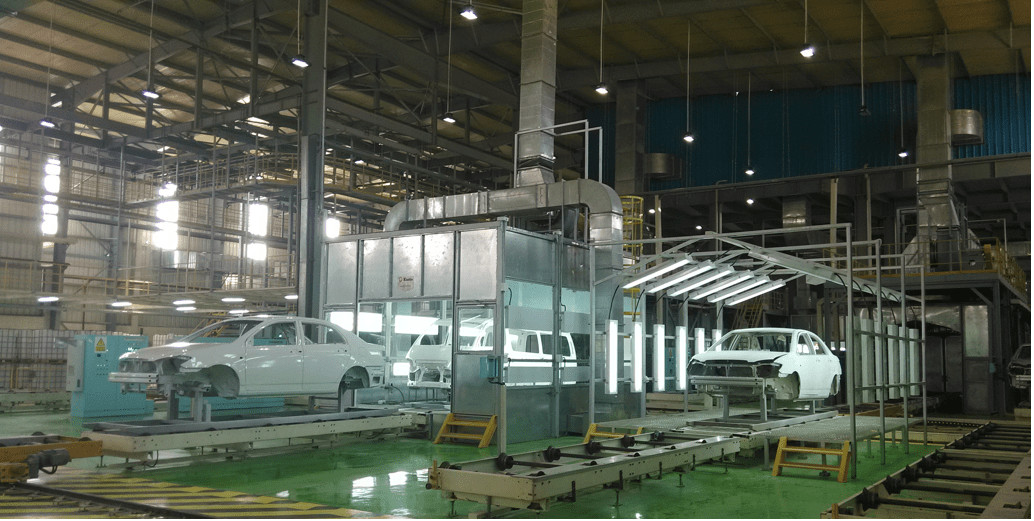

2-2. Working Booth
The working Booths are closed areas.
The floor section is formed of a supporting structure made of
profile steel.
Floor covering is checked metal plate or grating. ( Under body
sealing & Undercoat)
Enclosures will be constructed of galvanized and properly
reinforced steel sheet panels.
The walls are fitted with safety glass panes. Silhouettes at two
ends will be provCityed. Doors with automatic closer are installed
in the silhouettes. .
2-3. Access doors
Access doors are furnished for the access to this enclosure and
they are of industrial standard type
made of hollow metal.
Access doors are furnished with the door frames, door pulls,
automatic door closers, etc.
2-4. Window glasses
Window glasses are laminated clear glass and installed air tight
2-5. Air supply
Air supply ductwork along with air outlets are installed in this
area.
