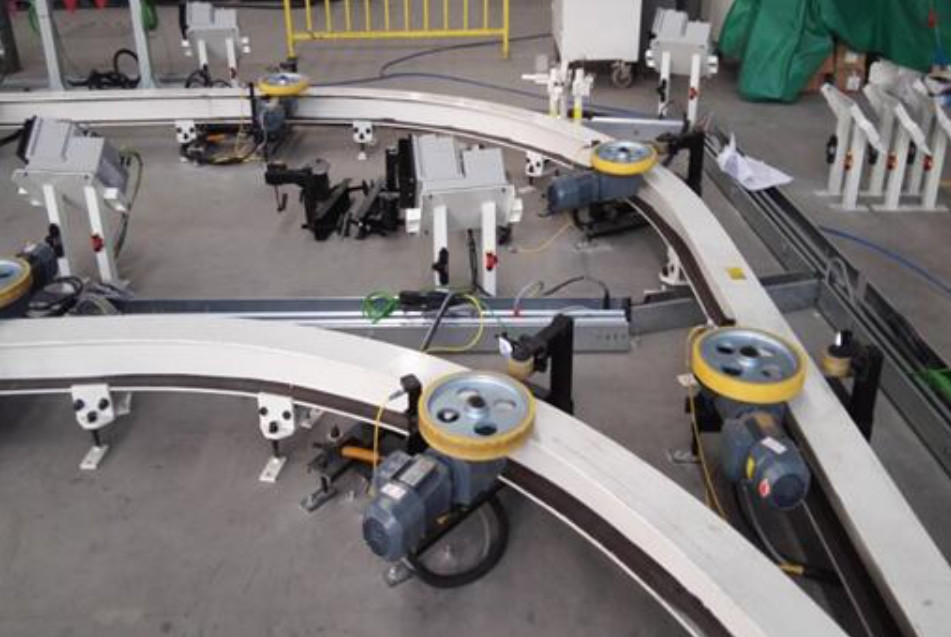

FDS Ground Friction Line System
FDS friction drive conveying system is an intelligent conveying
system suitable for flexible automatic production. The driving
mechanism is independently designed as a unit, with stable
operation and convenient maintenance. The space layout of the whole
system is flexible and the noise is low. FDS friction lines can be
divided into ground friction lines and air friction lines.
System Features:
The storage capacity of the line body is relatively large, and it
has a strong adaptability to production stoppage
The equipment unit is relatively simple and easy to maintain
The system load is small, and the operation is light and stable
Friction Conveyor (FDS) is a form of conveying that uses friction
to drive objects to be conveyed. It is one of the commonly used
forms of logistics conveyance. The application of the friction
conveyor in the car factory also has a variety of novel structural
application forms. Our company has a number of patented
technologies in the field of friction conveyors, and is at the
forefront of domestic counterparts.
Comparison with accumulative chain and sliding system
1) High utilization rate of space Since no chain is used, there is
no empty return chain, which can make full use of the plane space
of the factory building.
2) The line layout is simple
The friction line layout is simple. The track layout system of the
friction line is simple, and there are no wiring problems such as
return empty chains.
The layout of the skid line is complicated, and it needs to be
supported by auxiliary equipment such as jacking roller bed, chain
transfer, rail transfer and so on. The layout of the back-to-empty
chain must be considered when wiring the accumulation chain.
3) Low noise
There is no noise caused by the impact of the friction line during
operation. However, the impact noise of the accumulator chain in
operation is large, especially when the conveyor line speed is
12-18 m/min, the noise is relatively large, which affects the
working environment of workers.
4) High conveying speed
The conveying speed of the friction line can be selected according
to the process beat within the line speed range of 0~30m/min.
However, the conveying speed of the product chain can only be
within the linear speed range of 0~18m/min. Friction lines are more
suitable for large-scale production of steel rings in fast-paced
depots.
Due to the fast conveying speed of the friction line, compared with
the product chain, it can save the total number of trolleys or
spreaders under the same premise of producing steel rings.
5) Low energy consumption
The motors in each driving device of the friction line generally
have a power of 01~025Kw. Due to the relay operation mode, all
motors do not need to run at the same time, so the energy
consumption is low.
Because the product and release chain adopts the continuous
operation mode of the whole line, no matter how many conveying
products are in operation, the high-power motor needs to run
continuously, so the energy consumption is relatively high.
Comprehensively considering the use of friction lines and
accumulation chains can save 30% of energy consumption.
