Plate Conveyor Series
BL type slat conveyor is widely used in interior assembly and final
assembly of passenger cars, trucks, cars, construction machinery,
tractors, engines, etc. According to the form, it can be divided
into single plate chain, double plate chain and wide plate chain.

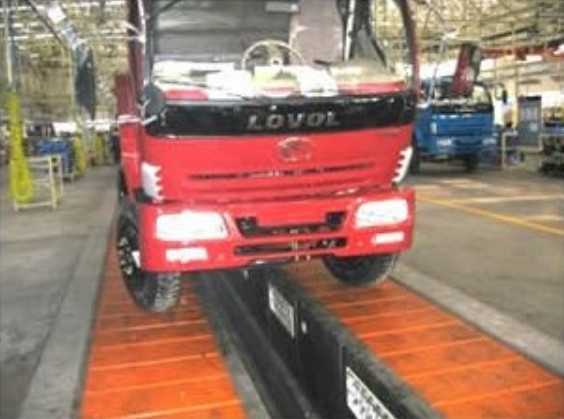

In the production of automobile assembly, vehicle transportation is
a very important link, and the transportation efficiency and
quality greatly affect the production effect. Therefore, on the
basis of recognizing the importance of assembly transportation, it
is necessary to actively introduce plate chain transportation
technology and change the traditional transportation aspects in the
past to ensure transportation efficiency and meet the needs of
automobile assembly and its development.
1 Definition and classification of equipment
Plate chain conveying refers to putting the workpiece on the chain
plate, and sometimes it is equipped with process support equipment.
The chain plate will be driven by the driving device along with the
chain to continuously advance to complete the conveying of the
workpiece. At present, it is mainly used in vehicle conveying and
assembly.
used in the process. Nowadays, with the continuous development of
the automobile manufacturing industry, plate chain conveying has
been widely used. Its application has accelerated production
efficiency and improved the degree of automation. There are more
and more plate chain conveying equipment now, and different
industries often use different types of equipment. For the
automotive industry, flat conveyors are the most commonly used. For
the classification of plate chain conveying equipment, according to
the single-point bearing capacity, it can be divided into heavy and
light; according to the width of the panel, it can be divided into
narrow type and wide type; according to the structure, it can be
divided into single-way type and double-way type: if according to
traction chain The quantity can be divided into single chain type
and double chain type; according to the actual operation mode of
the conveyor, it can be divided into continuous and intermittent
operation type; according to the specific installation form of the
conveyor, it can be divided into fixed type and mobile type.
2 Equipment structure and composition
For plate chain conveying equipment, it can be divided into two
parts: mechanical and electronic control. Among them, the
mechanical part is composed of chain, chain plate, track, drive,
tensioner and frame; and the electric control part includes PLC,
frequency conversion device, softening equipment and electric
control cabinet components. It can be seen from this that the
structure and composition of the equipment are relatively complex.
If we want to apply the equipment reasonably in actual production
to make it operate stably and reliably, we must clarify the
characteristics and functions of different components.
