FLEXIBLE FRAMING SYSTEM SKID

PRODUCT INTRODUCTION

Flexible Framing System Skid

Pic1

Flexible Framing System-Skid is the system for multi-models flexible assembly in one line at high takt and for storing, changing and locating fixtures. This world leading product with a number of international patents is researched independently by Mino. It covers the most important five concerns of end users, such as high accuracy, short cycle time, high flexibility, less investment and less space occupation. With modular design, easy to install and maintain. Planning one time, adding models phase by phase lowers initial cost.

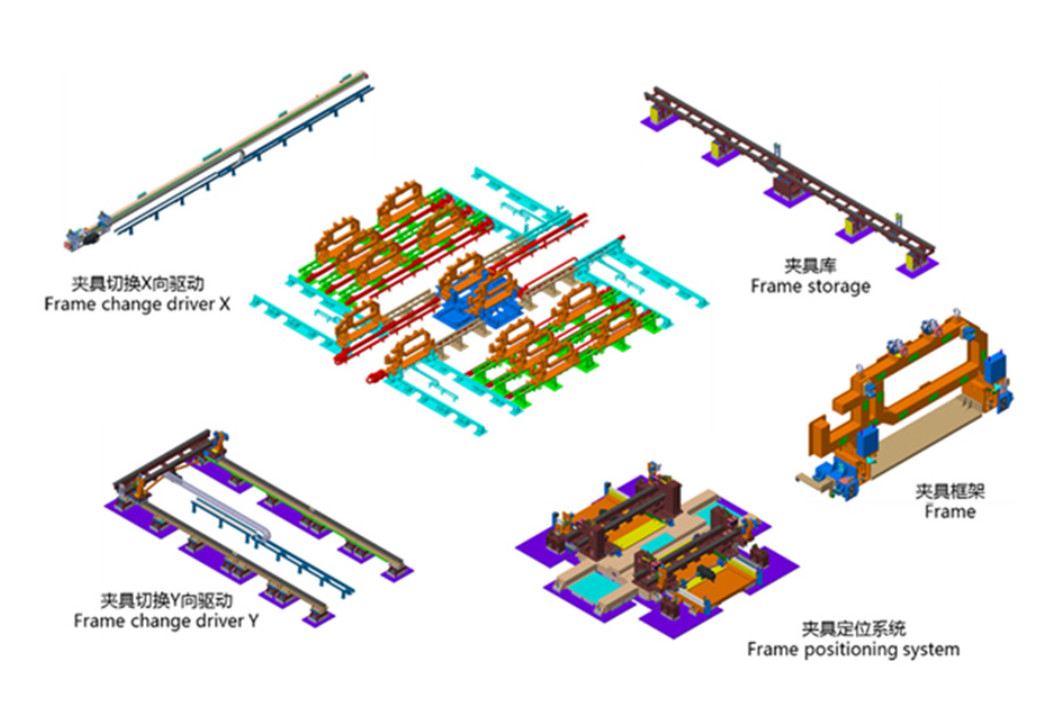

Product Module

Pic2

Product Parameters

Product Advantages

Flexibility

Maximum 7 Models Co-line

Models Switching at any time

Compatible with Various Body Conveyor System

Compatible with Various Floor Positioning System

Accuracy

Repositioning Accuracy: 0.05 mm

Fixture Rigidity of Body Side: 0.5mm/500kgf

One-side Fixture Locking Force: 8.8T

Occupation

Various layouts to adapt to a variety of sites

6 models narrowest to

6 models shortest to

Cycle Time

Non-welding Time: ≥23s

Number of Robots: 12~14

Fixture Switching Time: ≤9s

Fixture Matching Time: ≤37s

Investment

Modular Design

Investment by phases

Quick Import and Export of Models
