Aluminum alloy SPR ARC connection-ultra-thin plate welding
technology
SPR riveting case 1
cabin line stringer
Plate: cast aluminum+steel plate
Plate thickness: cast aluminum 3mm; steel plate 1.8, 0.8, 0.8,
1.5mm
Rivet diameter: 5.0mm
SPR Gun: Atlas (Henrob)
Robot: ABB; Electric control system: SIEMENS
Connection method: Weld+SPR
SPR riveting case 2
body in white
Plate: aluminum profile + aluminum plate
Plate thickness: aluminum profile 2.5, 3mm; plate 1.2mm
Rivet diameter: 6.0mm
SPR gun: Shanghai Tiger Welding (GRIPP CHN, UK)
Connection method: ARC+SPR
Aluminum alloy welding case 1
Aluminum battery box
Plate: aluminum alloy 6063+6005
Plate thickness: 2mm+2.5mm
Wire diameter: 1.2mm
Wire grade: ER4043
Welder: Fronius CMT
Technical features: Abitek laser welding bead tracking technology
is adopted to solve the unstable overlapping position of products.
Equipment brand: robot: MOTOMAN;
Electric control system: OMRON
Aluminum alloy welding case 2
aluminum bumper
Plate: aluminum alloy 7108+6063
Plate thickness: 2mm+3mm
Wire diameter: 1.2mm
Wire grade: ER5356
Welder: Fronius CMT
Robot : FANUC;
Electric control system: SIEMENS
Ultra-thin version welding case 1
bumper
Plate: carbon steel
Plate thickness: 0.5mm+1.0mm+1.2mm
Wire diameter: 1.0mm
Wire grade: ER50-3
Welder: Lincoln R450+Fronius CMT
Robot : FANUC;
Electric control system: SIEMENS
Ultra-thin version welding case 2
exhaust pipe
Plate material: stainless steel
Plate thickness: 1.0mm+1.0mm
Wire diameter: 1.0mm
Wire grade: ER307
Welder: Fronius CMT
Robot: FANUC;
Electric control system: PMC
Ultra-thin version welding case 3

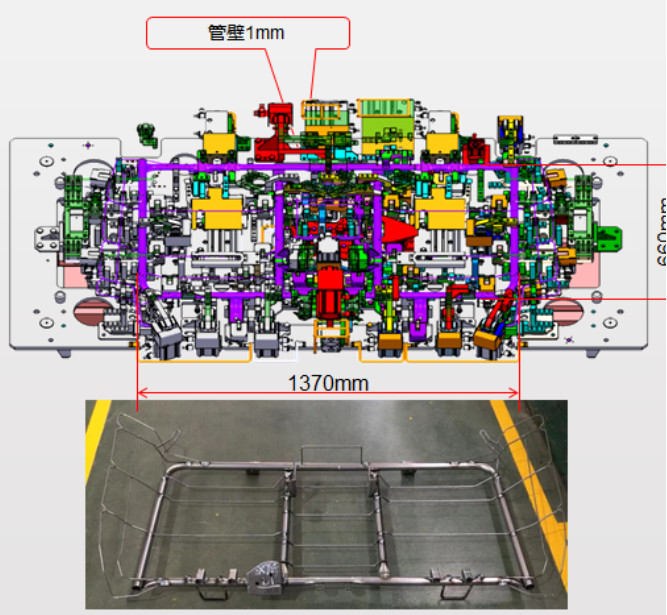

car seat frame
Plate: carbon steel
Plate thickness: 1.0mm+1.0mm
Wire diameter: 1.0mm
Wire grade: ER50-6
Welder: Lincoln R500 STT/ Panasonic YD-350GS
Robot : FANUC/Panasonic;
Electric control system: OMRON
