Standard Short Lead Time Arc Welding Workstation
Robot arc welding workstation introduction:
A robot workstation refers to one or more robots, equipped with
corresponding peripheral equipment, such as positioners, conveyors,
fixtures, etc., or with the help of manual auxiliary operations to
complete the welding process requirements of corresponding
products. This chapter mainly Take the arc welding workstation as
an example.
Features of robot arc welding workstation:
1. According to different products, process requirements and
customer needs, arc welding workstations are generally divided into
H-shaped, flat-shaped, multi-station product-shaped and simple
welding workstations;
2. Welding robots are mainly 6-axis industrial robots, and
different brand series of robots can be customized according to
different groups of customers (such as KUKA, ABB, Yaskawa,
Panasonic, FANUC, OTC, etc.);
3. The welding power supply can be matched with the corresponding
robot brand, and other brand welding machines can also be
configured according to actual customer requirements, which is
flexible and changeable to ensure the welding quality as much as
possible;

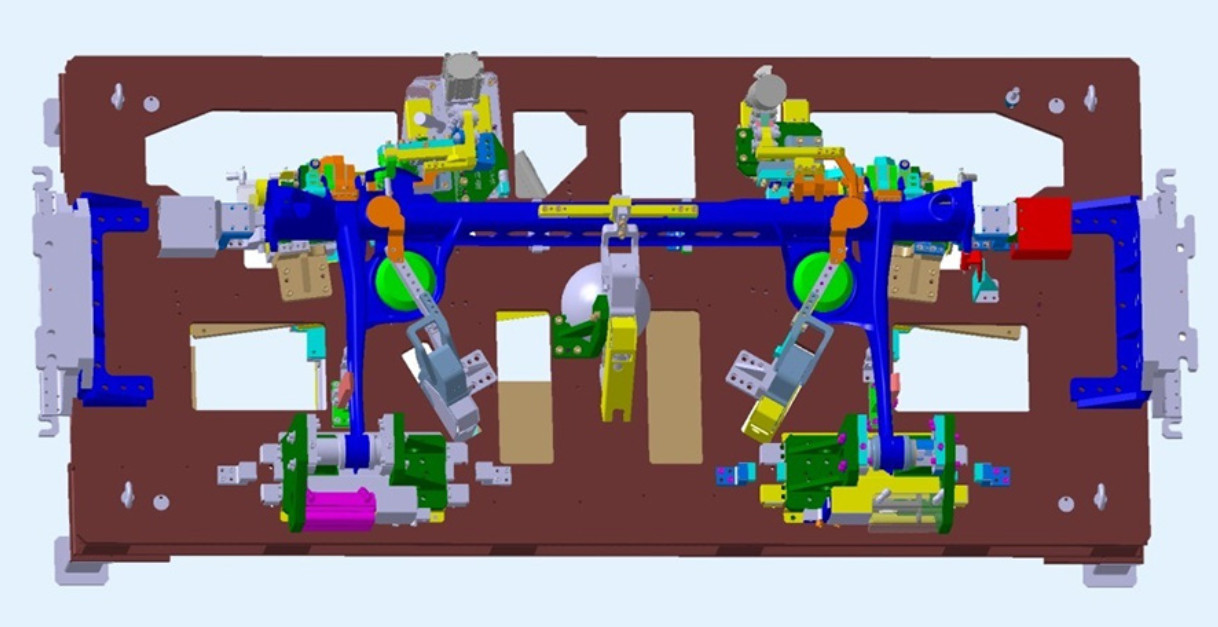

4. The arc welding workstation is generally equipped with multiple
sets of welding fixtures. The fixtures are mainly electronically
controlled and pneumatic. One welding workstation can accommodate
multiple sets of fixtures for welding. The workstation fixtures are
equipped with automatic identification functions to replace
different fixtures or add new fixtures. , the corresponding welding
program can be automatically selected or edited.
5. The welding station of the arc welding workstation is generally
equipped with an electric fast rolling door to ensure that the
welding arc cannot penetrate the workstation;
6. Each workstation is equipped with an independent PLC control
system and man-machine interface, which can monitor the internal
working process of the workstation and display fault alarm codes in
real time.
