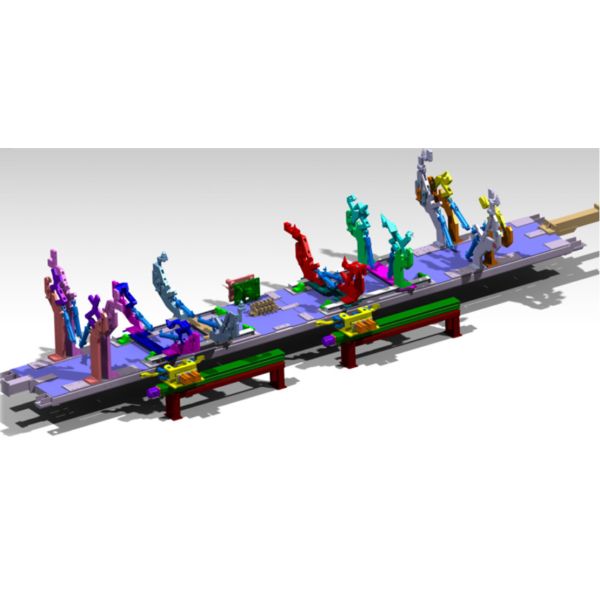

Flexible trolley

The flexible trolley has the characteristics of intelligent positioning, reliable performance, easy control, good versatility, and can adapt to multi-platform and multi-model switching production. It is used for flexible positioning of the body-in-white welding production line.

At present, the common trolley needs manual operation to switch the positioning unit during the model switching process, which adapts to the small number of models, low production cycle and low degree of flexibility. Compared with the existing technology, the flexible trolley developed by our company uses a lockable cylinder to complete the turning of the positioning unit, and adopts the in-position locking form of a middle-sealed valve and a plunger to ensure that the position of the positioning unit remains stable; it is equipped with cylinder motion sensing and Workpiece in-position detection and induction, automatically detects the switching state of the positioning unit and whether the workpiece is in place; configures the electrical automatic docking device to realize the automatic supply of trolley electrical; the servo drives the positioning unit to move arbitrarily on the slide rail, and when it reaches the set position, Clamping is achieved by shutting off the air.

Main technical parameters: two-axis linkage; 4 platform model switching; switching cycle 6 seconds; load 600kg; repeat positioning accuracy ± 0.1mm; servo drive; electromagnetic brake; pneumatic locking.

Kinte provides systematic solutions for the intelligent logistics system by scientific research & development and technological standard innovation, forming three main business sectors of Quality and Technical Services, Intelligent Equipment, Environmental Protection Coatings and Resin. Serving more than 10,000 customers annually, covering more than 30 countries and regions around the world, it has become an active practitioner of “the Belt and Road” initiative.

KINTE has undertaken a large number of national, provincial and municipal knotty-problem-tackling scientific research projects. From 1998 to 2021, over 600 scientific and technological achievements were made, including over 380 outstanding scientific and technological achievements, of which there are 9 national achievement awards, 146 provincial and ministerial achievement awards, and 63 municipal achievement awards. Over 100 national patents have been awarded , with the transformation rate of scientific and technological achievements reaching up to 85%.

KINTE has won the national technological market “Golden Bridge Award” for five times in 10 consecutive years, which holds every two years. Besides, Kinte owns multiple certificates, such as “Certificate for Foreign Engineering Contract of the People’s Republic of China” issued by the Ministry of Commerce of the People’s Republic of China (the only company with this certificate in Chinese household electrical appliance industry), “Engineering Design Certificate (Class A)” issued by the Ministry of Housing and Urban-Rural Development of the People’s Republic of China and “Special Engineering Design Qualification Certificate” issued by the Ministry of Environmental Protection of the People’s Republic of China.

Powerful Basic Strength
Strong Scientific Research Capacity
Extensive Engineering Experience
Perfect Service System

• A wholly owned subsidiary of SINOMACH (a central government governed enterprise, ranked 250th among World Top 500).
• Enterprise with bank credit of AAA level.
• 14 wholly owned or holding industrial subsidiaries.
• Completed more than 300 turnkey projects.
• Customers from more than 30 countries and regions.
• Holding the “Certificate for Foreign Engineering Contract of the People’s Republic of China”.
• Internationally : We set agency and after-sales service points in countries such as India, Saudi Arabia, Iran, Egypt, Turkey, Brazil, Algeria, Pakistan, etc..
• Marketing center: Offer 24-hours hotline and email service.
• Dedicated after-sales service department.
